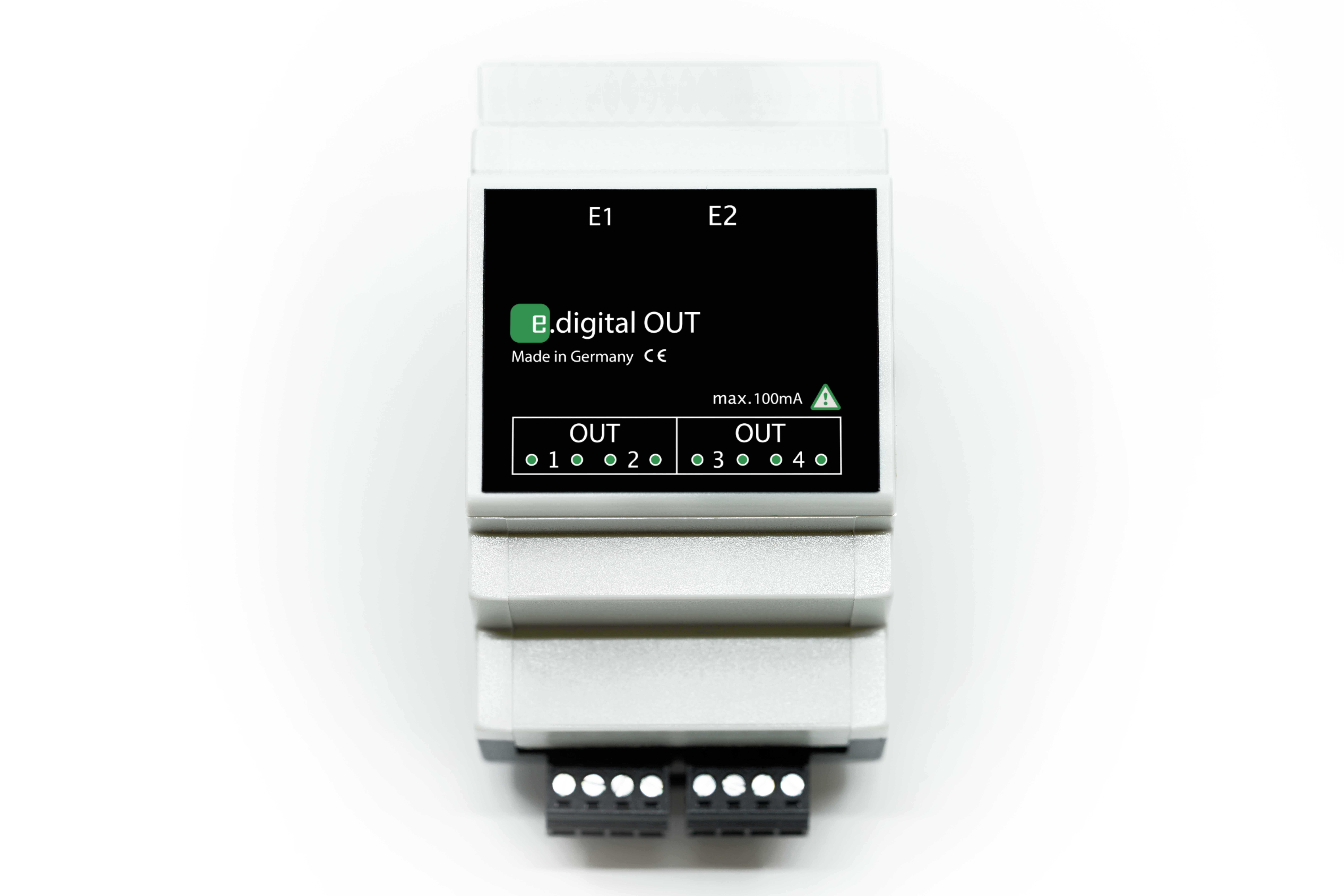

e.digital OUT

95,20 €*

Versandfertig in 3 Tagen, Lieferzeit 1-3 Tage

Produktnummer: 100054
Produktinformationen "e.digital OUT"







• 4x Digitaler Ausgang / Digital output

Das Gerät ist eine Erweiterung für den e.manager nD / mc Version 2.







TECHNISCHE DATEN



Eingangsspannung / Input voltage:5V DC
Eingangsstrom / Input current:< 50 mA
Anschluss / Connection:Schraubklemmen / Screw terminals

Digitaler Ausgang / Digital output:

4

Innenwiederstand / Internal resistance:

max.     35Ω   /   250V   /   100mA

Gewicht /Weight:100 g

Betriebstemperatur / Operating temperature

- 10 bis+ 40°C

Schutzart / Protection class:IP 10
Abmaße / Dimensions:3TE, 54 x 90 x 58 mm (BxHxT / WxHxD)
