Product information "Makeblock Sensor "Micro Switch B" / Button for MINT Robot"

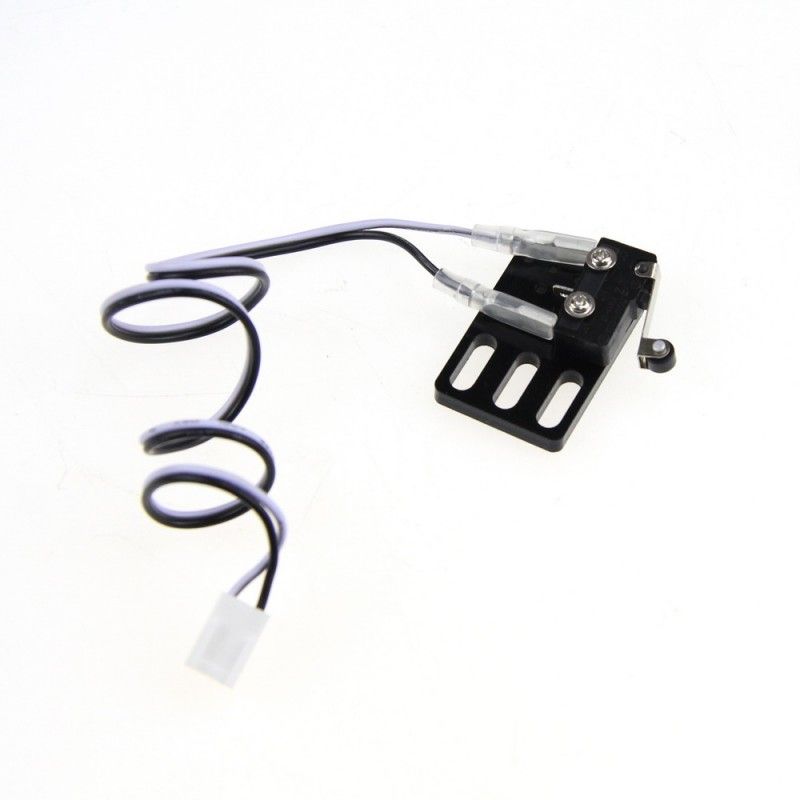

Makeblock Sensor "Micro Switch B" / Push Button for MINT Robots
The Me Micro Switch B is a physical switch and can be used perfectly with Makeblock parts. When triggered, it sends a signal to the control side. It can be connected to the Orion development board via the cable and RJ25 adapter module, and can be connected to Makeblock mechanical parts via the standalone brackets.
technical specifications
- Rated voltage: 250V AC
- Rated current: 1A
- Contact resistance: ≤50 mΩ
- Insulation resistance: ≥1 MΩ
- Switch life: 10,000 times
- Dimensions: 20 x 6 x 24 mm (L x W x H) without cable.
Functional characteristics
- Small size and easy to install
- Provide connecting wires to avoid re-welding by user
- Fully compliant with Arduino library functions to allow user to program easily
- Control of machine equipment and use of position-limited protection and circuit components
- Long mechanical and electrical life of the switch
