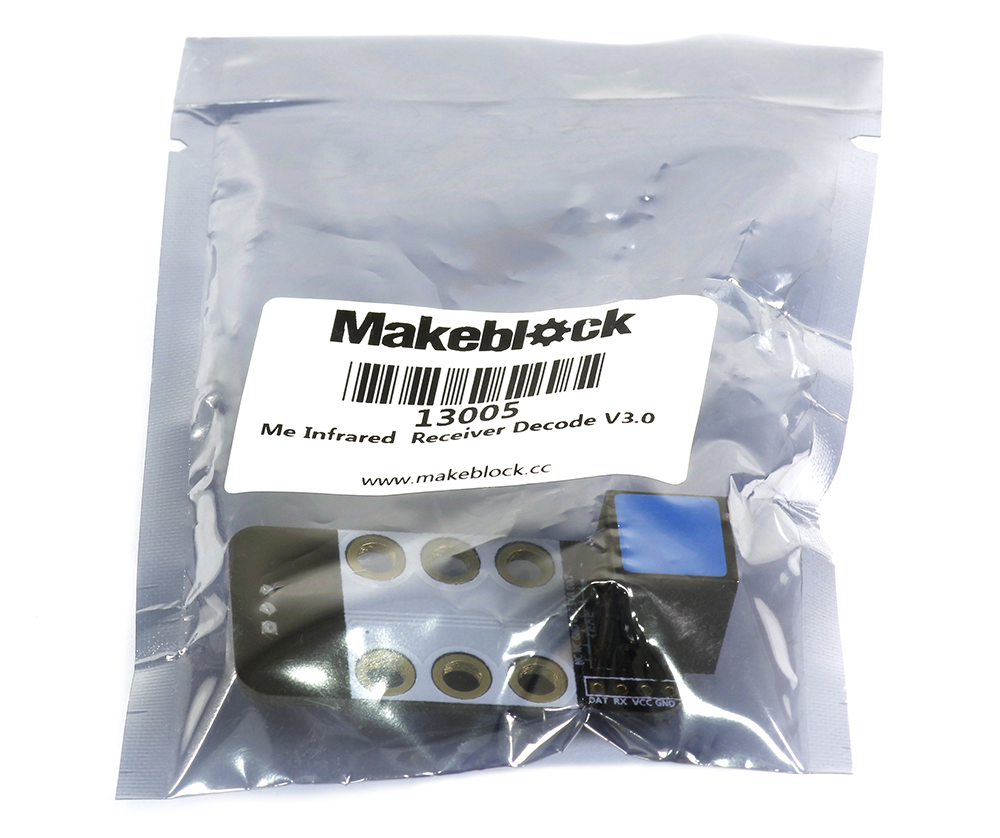

Product information "Makeblock-Me Infrared Receiver Decode V3"
"Makeblock-Me Infrared Receiver Decode V3"
Description:

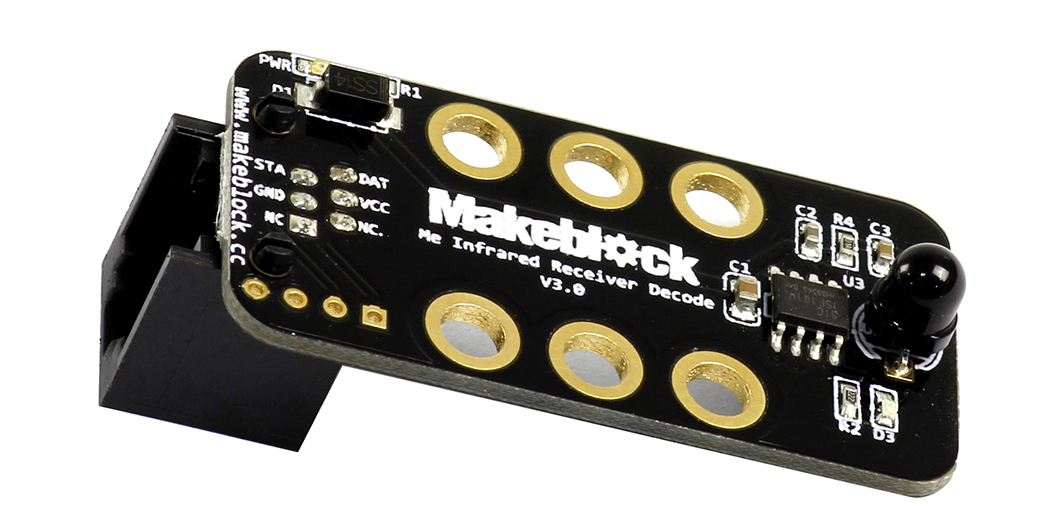

The Me Infrared Receiver Decode module is designed to receive infrared signals and control robotics from infrared remote control. The infrared receiver can receive signals within 10 meters. However, it is not able to receive signal more than 10 meters.
We use MCU instead of IC BC7210 in V3.0, it is programmed like BC7210. The IR remote control is under the NEC IR protocol. If you need to use other IR protocols, you can try to reprogram it.
Makeblock also provides an Arduino library for this module and provides a simple software interface for the decoding signals to allow users to program it easily.
Features:
Better decoder solution than V2.0
Easy control by using IR control under NEC IR protocol
Comes with Arduino library for easy programming
Overcurrent protection
Easy wiring with 6 pin RJ25 interface
Labeled with blue tag and compatible with Me baseboard
2.54mm breakout pins to connect to jumper wires
16mm interval M4 mounting holes compatible with Makeblock beams
Two LEDs for on board indication for debugging and feedback
Distance: 10 meters in free space
Dimensions: 2.4cmx4.8cm
Note: The battery of IR remote control panel is not included to ensure safe transportation. The battery size is CR2025.
